2100, AKA U4901 or INT
2100, AKA U4901 or INT
Basic Features
Structure: Single End
Pressure: Low Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: General Temperature Mechanical Seal
Performance: Wear and Weak Corrosion
Standard: DIN24250, ISO3069, GB6556, EN12756
Model NO.: 2100, AKA U4901 or INT
Balance: Balanced
Specification: Inner Diameter: 10 mm to 100 mm
Product Detailed Description

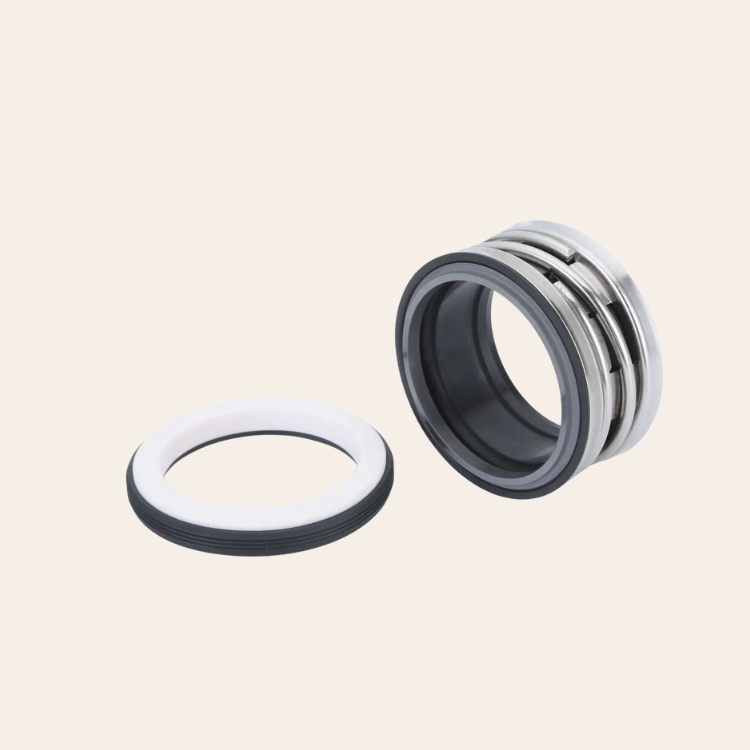

2100, AKA U4901 or INT, Mechanical Seal for Centrifugal/Vacuum Pumps, Submerged Motors, Compressors, and Decelerators
Structural Features: single end, balanced, independent direction of rotation, rubber bellow, bellow transmission mechanical seal. This component seal has a compact structure and good compatibility and it is easy to install. The bellow and the spring provide pressure compensation to the sealing faces. The rubber bellow design can prevent radial run-out so that the floatability of the rotary ring is increased.
Industrial Standards: DIN24250, ISO3069, GB6556, EN12756
Scopes of Application: mainly used in centrifugal pumps, vacuum pumps, submerged motors, compressors, agitation equipment and decelerators for sewage treatment, chemical engineering, pharmacy, paper making and food processing. This component can work as an alternative to the similar product of John Crane.
