MFL85N
MFL85N
Basic Features
- Structure: Single End
- Pressure: Medium Pressure Mechanical Seals
- Speed: General Speed Mechanical Seal
- Temperature: High Temperature Mechanical Seal
- Performance: High Temperature and Wear
- Standard: DIN24960, ISO3069, GB6556, EN12756
- Model NO.: JBMFO, AKA MFL85N or 680 and 680M
- Balance: Balanced
- Specification: Inner Diameter: 25 mm to 100 mm
Product Detailed Description

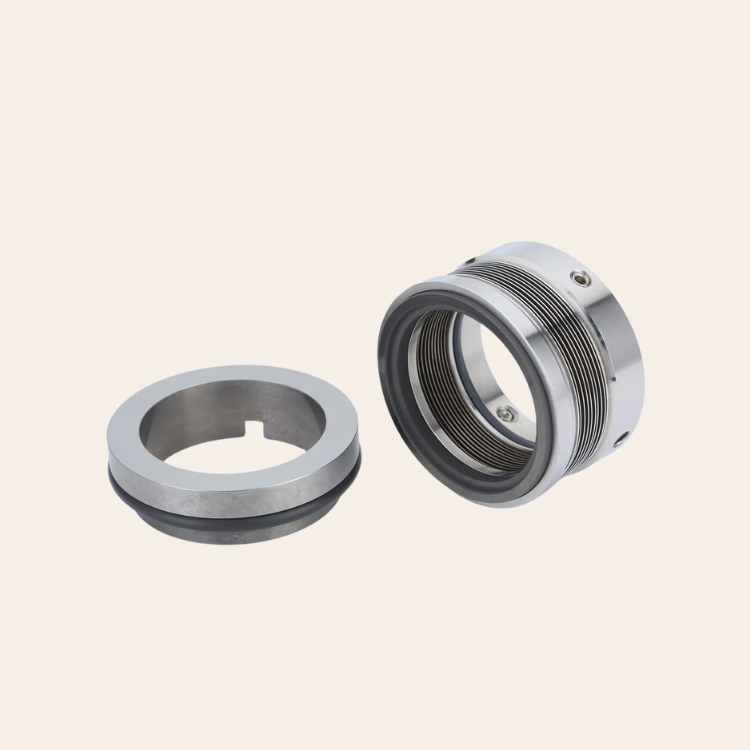

JBMFO, AKA MFL85N or 680 and 680M Metal Bellow Mechanical Seal
Structural Features:Â single end, balanced, independent direction of rotation, bellow transmission. The bellow provides sealing faces with the closing force and also transmits the torque. The O-ring does not have axial movements so it has good tracing ability and strong capacity of resisting disturbance. This seal component is easy to install and adjust and has especially good performances of being used in medium-and-low viscosity mediums.
Industrial Standards:Â DIN24960, ISO3069, GB6556, EN12756
Scopes of Application:Â widely used in petrochemical engineering, oil refining, chemical processing, chemical fiber manufacturing, food and beverage processing, pharmacy, thermoelectricity and paper making. Designed for chemical pumps, oil pumps, screw pumps, compressors and oil extraction equipment.
