169
169
Basic Features
- Structure: Single End
- Pressure: Low Pressure Mechanical Seals
- Speed: General Speed Mechanical Seal
- Temperature: General Temperature Mechanical Seal
- Performance: Corrosion
- Standard: JB/T 7371-94
- Model NO.: Type 169
- Balance: Balanced
- Specification: Inner Diameter: 30 mm to 60 mm
Product Detailed Description

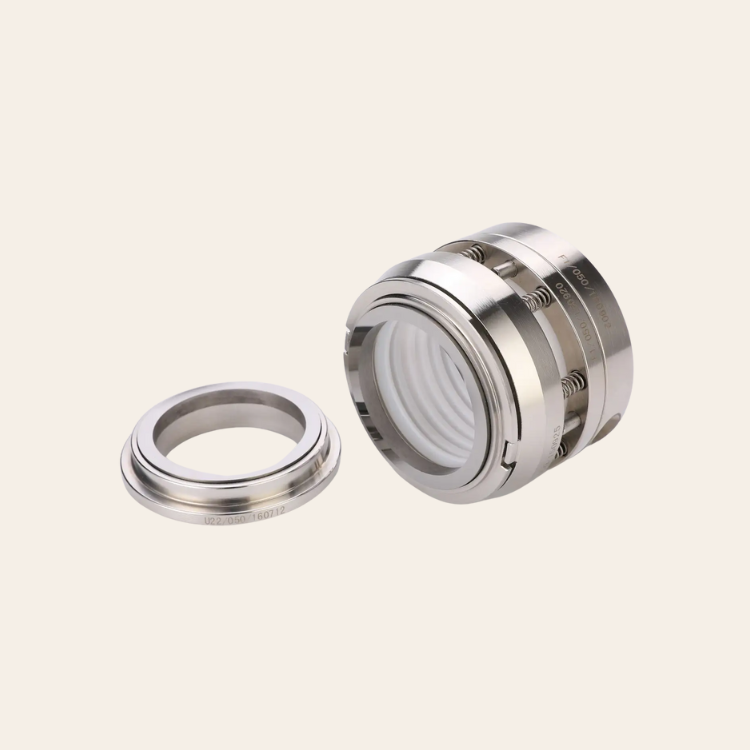

169 Multiple Spring PTFE Elastomer Bellow Mechanical Seal for Chemical Pumps
Structural Features: single end, multiple springs, balanced PTFE elastomer bellow mechanical seal. This seal uses multiple small springs and PTFE bellows as compensation components and the rotary component is driven by the PTFE bellow. This seal is outboard installed.
Industrial Standards: JB/T 7371-94
Scopes of Application: widely used in chemical pumps, especially alkali pumps that work with alkali liquid containing solid particles.
