108U
108U
Basic Features
Structure: Single End
Pressure: Medium Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: General Temperature Mechanical Seal
Performance: Wear and Corrosion
Standard: ISO3069, GB6556, DIN24960
Model NO.: Type 108U
Balance: Unbalanced
Specification: Inner Diameter: 35 mm to 100 mm
Product Detailed Description

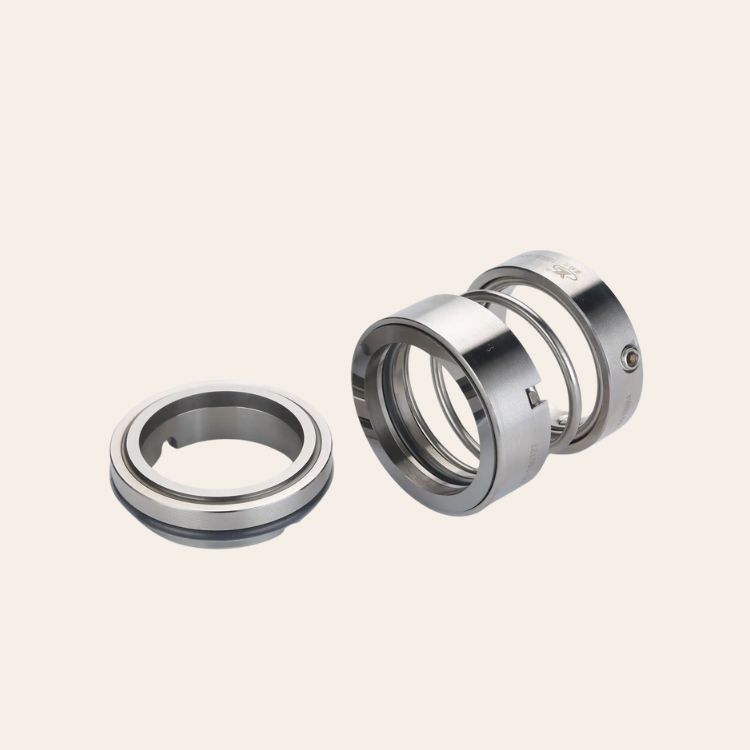

108U Single Spring Mechanical Seal for Water Pumps, Circulating Pumps and Vacuum Pumps
Structural Features: single end and single spring, unbalanced, fixed rotary direction and spring coil driven. The spring coil driven structure has a fixed rotary direction. The structure of this seal is simple and the cost is low. This seal component has a wide usage and is stable and reliable.
Industrial Standards: ISO3069, GB6556, DIN24960
Scopes of Application: widely used in petrochemical engineering, oil refining, chemical processing, chemical fibering, water treatment and chemical transportation.
